General Introduction

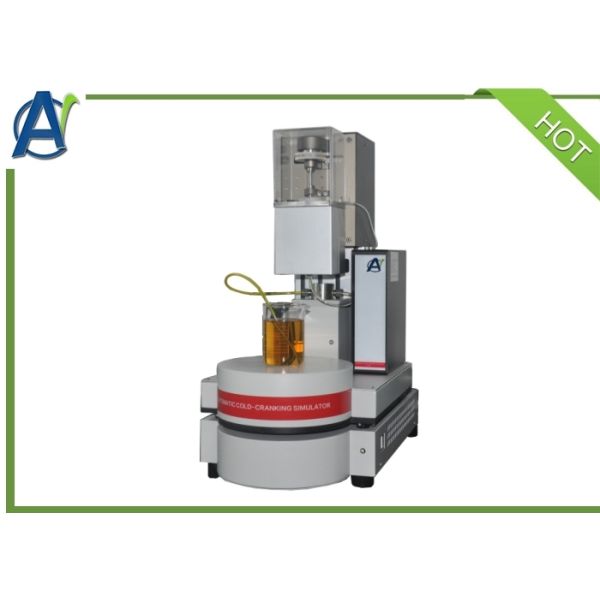

This Automatic Engine Oil Apparent Viscosity Tester (Auto Sampling) adopts the Cold Cranking Simulator (CCS) method to determine the apparent viscosity of engine oils.
It is suitable for the determination of engine oils with a test temperature range of -10 ℃~-35 ℃ and an apparent viscosity range of 900mPa·s~25,000 mPa·s.
The tester is computer-controlled, running on the Windows operating system (XP / Win7) and can be connected to a printer for result printing.
It supports auto sampling, auto cleaning, auto testing and auto data storage.
Features
1.Automatically detects rotational speed and controls current to minimize human error.
2.Driven by an imported motor for exceptional precision and stability.
3.Equipped with a semiconductor refrigeration system for rapid temperature adjustment across the full test range.
4.Automatically calculates test results after calibration with standard reference oils.
5.Computer-controlled operation via Windows OS (compatible with XP/Win7); supports result printing via connected printers.
6.Features an improved rotor design that ensures high repeatability even under low-torque testing conditions.
7.Automatically generates calibration curves and directly displays the measured viscosity results.
8.Fully automated test procedure requires no manual intervention; the instrument stops automatically upon completion and initiates temperature recovery.
9.Intelligently recommends optimal refrigeration temperatures for streamlined operation.
10.Utilizes a rotary encoder for precise rotational speed detection.
11.Viscosity Measurement Range: 900 mPa·s ~ 25,000 mPa·s.
12.Allows storage and editing of calibration data for up to 20 standard reference oils.
13.Configured with a dedicated low-temperature refrigerated circulator for enhanced thermal stability.
14.Temperature Control Precision: ±0.02 ℃.
15.Automatically calculates calibration deviations of standard oils to verify the accuracy of calibration data.
16.Patented semiconductor refrigeration technology for lubricating oil apparent viscosity testing. Patent No.: ZL201822076893.4.
17.Patented auto-sampling and auto-cleaning mechanism for lubricating oil apparent viscosity testing. Patent No.: ZL201822076944.3.
The Technical Specifications and Parameters
| Model |
CCS-II |
| Applicable Standards |
GB/T 6538, ASTM D2602, ASTM D5293 |
| Cooling Mode |
Semiconductor Refrigeration |
| Circulation Mode |
Multi-functional universal plastic steel pump |
| Temperature Control Mode |
Digital display PID temperature controller |
| Testing Mode |
Auto Sampling, Auto Cleaning, Auto Testing |
| Result Processing |
Automatic Data storage |
| Temperature Control Range |
-5℃, -10℃, -15℃, -20℃, -25℃, -30℃, -35℃ |
| Power Supply |
AC 220V, 50Hz |
| Total Power |
1000w |
| Dimensions |
780mm*560mm*960 mm |
| Net Weight |
40KG |
FAQ
1.What's the delivery time?
About 40days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
