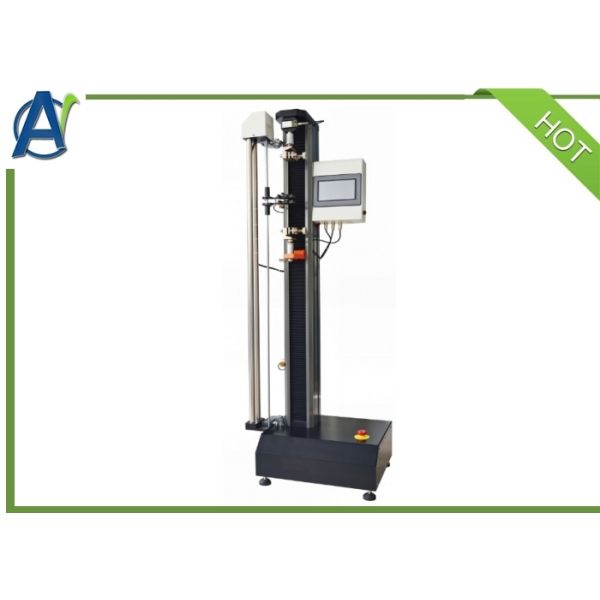

ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke

Name: ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke
Brand: Advanced Instruments
Price: 5000 USD

Quality ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke for sale

Brand Name : Advanced Instruments

Model Number : AIC-21006B

Certification : ISO6892-1:2009;ISO7500-1:2004

Place of Origin : China

MOQ : 1set

Price : $5000~$10000

Payment Terms : L/C,T/T,D/P

Supply Ability : 20sets/month

Delivery Time : 60days

Packaging Details : Plywood Case

After Service : Response in 12 Hours 12 Months

Warranty : 1full Year

Transport Package : Plywood Case

Test Standard : ISO6892-1:2009;ISO7500-1:2004

Application : Universal Testing,Plastic Testing, Tensile Testing

Power Supply : AC220V,50/60Hz,2A

Effective stroke : about 800mm

Displacement resolution : 0.01mm

Test Material : Metal,Steel,Wire Rope,Rubber,Plastic

Max Test Force : 5N,100N, 500N,1000N,2000N(Optional for Users)

Test force value relative error : ≤±1%

Test speed range : 0~500mm/min

Contact Now

General Introduction

1.1 Equipment overview

LCD digital display tensile tester (large deformation) is widely used for hardware, metal, rubber and plastics, footwear, leather, clothing, textiles, insulators, wires, cables, terminals and other types of materials, to test tensile, tear, peel, compression, bending and other materials research and development, inspection and test, with multiple functions, wide range of uses. LCD digital display tensile tester (large deformation) is adopted aluminum alloy enclosure, with lightweight body, beautiful appearance.

1.2 Related standards

ISO6892-1:2009
ISO7500-1:2004

ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke

Technical parameters

Max test force: 50N,100N,500N,1000N,2000N (optional for users)
Effective stroke: about 800mm
Test force value relative error: ≤±1%
Test speed range: 0~500mm/min
Displacement resolution: 0.01mm
Sensor: American Transcell S type sensor
Power system: XINJIE 400W servo motor
Clamps: Wave tooth type non-self-tightening clamps, 45 # steel processed, hard chrome plated surface
Large deformation: the distance between the two grips can be tracked automatically to calculate the elongation
Large deformation resolution: 0.1%
Ball screw: TBI2505 ball screw made in Taiwan, high transmission accuracy, using grinding process, good finish, keeping good accuracy, long service life. Good process of nuts, high load carrying capacity
Guide rod bearing: NSK ball linear bearing imported from Japan
Speed reduce device: Italy Outes precision vacuum cast aluminum reducer 1: 15
Guide rod: made of two φ25 bearing steels with surface hardening, the surface hardness can reach above HRC58
Dust prevention device: Taiwan suppression dust stacks cover to protect the screw from dust entry
Machine body surface treatment: Adopt the DuPont powder made in USA, electrostatic painting process, 200 ℃ high temperature curing, to ensure permanent non-fading
Display method: LCD
Section bar: one-time extrusion, generous appearance. oxidation coloring aluminum alloy section bar, high hardness, abrasion and corrosion resistance
Safety device: overload stop function, up and down travel limiter, sample break stop function

Technical specifications

Overall Dimensions: 500mm*420mm*1650mm
Power supply: AC 220V, 50/60Hz, 2A

ISO6892 ISO7500 LCD Digital Display Universal Tensile Testing Machine with Large Deformation Extensometer and 800mm Effective Stroke

FAQ

What's the delivery time?
About 60days.
What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
