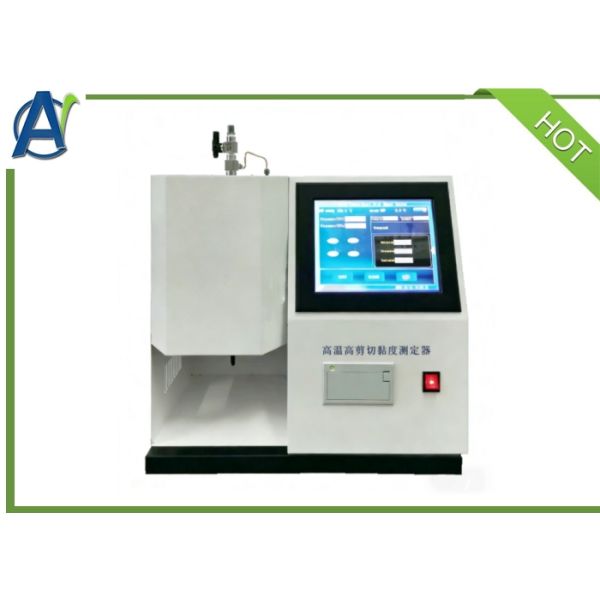

ASTM D5481 Lubricating Oil Dynamic Apparent Viscosity Testing Equipment at High-Temperature and High-Shear HTHS

Name: ASTM D5481 Lubricating Oil Dynamic Apparent Viscosity Testing Equipment at HighTemperature and HighShear HTHS
Brand: Advanced Instruments
Price: 10000 USD

Quality ASTM D5481 Lubricating Oil Dynamic Apparent Viscosity Testing Equipment at High-Temperature and High-Shear HTHS for sale

Brand Name : Advanced Instruments

Model Number : AIC-0703A

Certification : ASTM D5800

Place of Origin : China

MOQ : 1 set

Price : US$10000-15000/set

Payment Terms : T/T, L/C, D/P

Supply Ability : 50Sets Per Month

Delivery Time : 20days

Packaging Details : Plywood Case

Test Standard : ASTM D5481

Temperature control mode : Aluminum bath constant temperature

Temperature Control Range (Experimental : 150±0.1℃

The number of viscosity pools : 1 tube (2 tubes need to be optional)

capillary inner diameter : 0.15mm

Capillary effective length : 16-18mm

Air pressure range : 0.5-3.5 MPa

Heating Method : Electric heating rod

power supply : AC220V±10％ 50Hz

Contact Now

General Introduction

This Apparent Viscosity Testing Equipment at High-Temperature and High-Shear complies with standards ASTM D5481 and SH/T0703. Under test conditions of 150℃, the sample is forced through a capillary viscometer by nitrogen (or carbon dioxide) pressure. The apparent viscosity of the sample at a wall shear rate of 1.4×10⁶s^-1is determined from the sample's efflux time and pressure. By using calibration curves for each viscometer cell, the oil viscosity corresponding to the measured pressure can be established..

Product Advantages

1.Highly integrated design structure for easy operation and high automation; equipped with a 10-inch color LCD touch screen for user-friendly and intuitive operation.

2.Flexible sampling system with single-channel sampling as standard, and optional dual-channel sampling system to meet different experimental needs.

3.High-precision and high-resolution PLC controller and imported pressure transducer ensure data accuracy.

4.Metal heating device with temperature control range of 50-180°C and accuracy of ±0.1°C.

5.Original imported standard oil from U.S. KAYON ensures data accuracy.

6.Powerful intelligent functions and data management: automatically recommends pressure settings based on estimated viscosity to improve efficiency; automatically calculates results after testing, supports data storage and printing; and provides historical data query and management.

7.Sample cleaning device can autonomously filter solid impurities to ensure sample purity; automatically calculates calibration parameters and supports multi-point deviation correction to enhance experimental precision.

8.Advanced control parameters (such as temperature, pressure, flow rate, etc.) ensure stable and reliable experimental process.

ASTM D5481 Lubricating Oil Dynamic Apparent Viscosity Testing Equipment at High-Temperature and High-Shear HTHS

The Technical Specifications and Parameters

Power supply	AC(220±10%)V, 50Hz
Heating Method	Electric heating rod
Temperature control range(Experimental)	150±0.1℃
Pressure Control Range	50kPa ~3500kPa
Sample Capacity	8ml
The number of viscosity pools	1unit(2 tubes need to be optional)
Capillary Viscometer inner diameter	0.15mm
Capillary effective length	16-18mm
Usage environment	Ambient temperature (10~40) °C, relative humidity: ≤85%
Display	Touch screen display

ASTM D5481 Lubricating Oil Dynamic Apparent Viscosity Testing Equipment at High-Temperature and High-Shear HTHS

FAQ

1.What's the delivery time?
About 20days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
