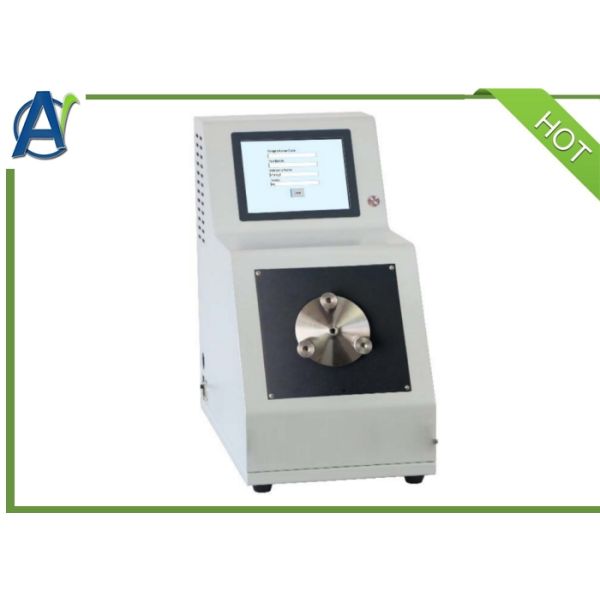

ASTM D2272 Automatic Lubricating Oil Oxidation Stability Detector (Rotating Bomb Method)RBOT/RPVOT

Name: ASTM D2272 Automatic Lubricating Oil Oxidation Stability Detector Rotating Bomb MethodRBOTRPVOT
Brand: Advanced Instruments
Price: 5500 USD

Quality ASTM D2272 Automatic Lubricating Oil Oxidation Stability Detector (Rotating Bomb Method)RBOT/RPVOT for sale

Brand Name : Advanced Instruments

Model Number : RBOT-C

Certification : ASTM D2272

Place of Origin : China

MOQ : 1 set

Price : US$5500-6000/set

Payment Terms : T/T, L/C, D/P

Supply Ability : 50Sets Per Month

Delivery Time : 20days

Packaging Details : Plywood Case

Test Standard : ASTM D2272

Power Supply : AC220 V±10V, 50Hz

Test method : Rotating Bomb Method

Total Power : <1000W

Test bath temperature control point : 140℃,150℃

Temperature control accuracy : ±0.1℃

Pressure measurement range : 0~1.6Mpa

Pressure measurement accuracy : ±0.5%

Heating Method : Metal Bath

Rotating mechanism speed : (100±5)r/min

Oxygen bomb angle with horizontal plane : 30°

Ambient temperature : 15℃~28℃

Net Weight : 30kg

Contact Now

General Introduction

This Automatic Lubricating Oil Oxidation Stability Detector is designed and manufactured according to Method B of the American Society for Testing and Materials (ASTM) D2272-2009 "Standard Test Method for Oxidation Stability of Lubricating Oils" and NBSHT 0193-2022 "Rotating Bomb Oxidation Test" standards. It is suitable for testing the oxidation stability of oils as specified in the standards at two temperature settings: 150°C or 140°C.

The Automatic Lubricating Oil Oxidation Stability Detector can evaluate the oxidation stability of new and in-service steam turbine oils with identical compositions (base oils and additives). (For cases where test data precision is not critical, it may also be used to assess the oxidation stability of new mineral insulating oils containing 2,6-di-tert-butyl-p-cresol as a rapid evaluation method.)

Product Advantages

1.The whole machine is integrated design, desktop structure, high degree of integration, using touch screen industrial computer, and the instrument has a built-in electric winding machine for making catalyst coils.

2.The metal bath design reduces oil fume hazards and environmental pollution, making operation convenient.

3.The glass sample container rotates during testing, with smooth speed and low noise.

4.Built-in air cooling system improves the efficiency of continuous testing.

5.Automatic or manual pressure adjustment facilitates oxygen charging and discharging operations, and has an automatic cartridge leakage detection function.

6.Real-time calibration of temperature and pressure ensures accuracy.

7.High-precision pressure and temperature sensors provide stable and reliable test data, with temperature overheat protection.

8.Automatically detects the oxidation turning point and ends the test automatically, ensuring safe and environmentally friendly testing.

9.The Automatic Lubricating Oil Oxidation Stability Tester automatically saves test results upon completion, which can be exported, uploaded, and connected to an external printer.

ASTM D2272 Automatic Lubricating Oil Oxidation Stability Detector (Rotating Bomb Method)RBOT/RPVOT

The Technical Specifications and Parameters

Temperature control point for test bath	140ºC,150ºC
Temperature control accuracy	±0.1ºC
Range for pressure sensor	(0~1.6)MPa
Pressure accuracy	±0.5%
Rotation speed	(100±5)r/min
Included angle between oxygen bomb and horizontal plane	30°
Power supply	AC(220±10%)V, 50Hz
Total power consumption	<1000W
Working Temperature	15ºC~28ºC
Relative humidity	≤85%
Dimension	280mm×500mm×510mm
Net weight	30kg

ASTM D2272 Automatic Lubricating Oil Oxidation Stability Detector (Rotating Bomb Method)RBOT/RPVOT

FAQ

1.What's the delivery time?
About 20days.
2.What's your payment terms?
30% paid by T/T in advance,70% paid by by T/T before shipping.
3.What's your guarantee terms?
The warranty of all products is 1 year.During this period,we are responsible for all faults caused by us.And we can supply life-long technical support.
4.Can you supply training?
We can supply training in our factory and online training for free.If onsite installation and training are required,please pay for tickets,accommodation and salary USD280/Day for every person.
